A modular program that provides the ability to go from field scan to finished plat, Carlson Point Cloud delivers powerful automation for large data sets. View and process up to 1 billion points all with Carlson ease-of-use.
Point Cloud is available in Basic or Advanced versions.
A modular program that provides the ability to go from field scan to finished plat, Carlson Point Cloud delivers powerful automation for large data sets. View and process up to 1 billion points all with Carlson ease-of-use.
Point Cloud is available in Basic or Advanced versions.
KEY FEATURES
Register scans to local coordinates, filter or decimate the points, and overlay raster images in 3D
Snap to edges and code descriptions for automated field-to-finish processing of linework and symbols
Create contours, profiles, sections, and breaklines from within the point cloud
Lastly, all surface models, points, contours, breaklines, grid and profiles can be exported to CAD.
FOR CARLSON’S CAD-BASED PRODUCTS
Carlson products installed on top of the CAD products of IntelliCAD or AutoCAD, are subject to the same requirements as the CAD engine itself. Please follow the requirements for the CAD platform listed below and allow an additional 750 MB of hard-drive space for the Carlson application.
INTELLICAD
CARLSON 2020-2022 WITH INTELLICAD 9.X OR 10.X
Compatible with 64 bit Windows 7, 8, 8.1, 10, 11 (Vista and 32 bit are not supported)
CARLSON 2016-2019 WITH INTELLICAD 8.X
Compatible with 32 or 64 bit Windows Vista, 7, 8, 8.1, and 10
HARDWARE REQUIREMENTS
Intel® Pentium® 4 or comparable (minimum), Intel i7 or at least Intel i5 or comparable (recommended). Due to the variety of processors on the market, one can use cpubenchmark.net/cpu_list.php to do comparative analysis. While the overall processor score matters, the single thread performance is of the most interest.
32-bit Windows 7-8.1: 1 gigabyte (GB) of RAM minimum, 4 GB recommended.
64-bit Windows 7-10: 2 GB of RAM minimum, 8+ GB recommended.
Windows Vista: 1 GB of RAM minimum, 4 GB recommended.
Windows XP: 512 megabytes (MB) of RAM minimum, 2 GB recommended.
Graphics card compatible with OpenGL Version 1.4 or higher:
Recommended are desktop graphics level discrete (not integrated cards like Intel HD) graphics cards.
Preferably Nvidia Geforce due to their more consistent driver support.
Discrete ATI/AMD cards will be adequate, but ATI’s driver support has been spotty and user is frequently deferred to the computer manufacturer for support.
Professional Nvidia Quadro cards are not currently recommended due to driver issues.
Powerful gaming cards are not required and probably would not provide as much benefit as investment in more memory or better CPU
Please note the CPU compatibility below: older AMD CPUs like Athlon XP+ do not support SSE2 technology and can not run Embedded AutoCAD 2013 products.
Windows® 8 and 10 Standard, Enterprise, or Professional edition (8 requires installation of AutoCAD LT 2013 Service Pack 2); Microsoft® Windows® 7 Enterprise, Ultimate, Professional, or Home Premium edition (SP3 or later) with an Intel® Pentium® 4 or AMD Athlon™ dual-core processor, 3.0 GHz or higher with SSE2 technology.
1 GB RAM (minimum), 8 GB (recommended)
1.4 GB free disk space for installation
1,024 x 768 VGA display with true color
Internet Explorer 7.0 or later
Install from download
CARLSON SOLUTIONS BASED ON AUTOCAD 2010 EMBEDDED
TAKEOFF R4, R5 / SURVEY OEM 2010, 2011, 2012
Please note the CPU compatibility below: older AMD CPUs like Athlon XP+ do not support SSE2 technology and can not run Embedded AutoCAD 2010 products.
Microsoft Windows 7, or,
Windows Vista, SP1 or later (Enterprise, Business, Ultimate, Home Premium) operating system, with,
Intel Pentium 4 processor or AMD Athlon dual-core processor, 3.0 GHz or greater with SSE2 technology
1 GB RAM (minimum), 8 GB (recommended)
850 MB free disk space for installation
1024 x 768 VGA display with true color
Microsoft Internet Explorer 7.0 web browser or later
Or
Microsoft Windows XP Professional or Home Edition operating system (SP2 or later), with,
Intel Pentium 4 or AMD Athlon dual-core processor, 1.6 GHz or greater with SSE2 technology
512 MB RAM
850 MB free disk space for installation
1024 x 768 VGA display with true color
Microsoft Internet Explorer 7.0 web browser or later
CARLSON SOLUTIONS BASED ON AUTOCAD 2007 EMBEDDED
TAKEOFF R2, R3 / SURVEY OEM 2007, 2008, 2009
Microsoft Windows 7, or,
Windows Vista, or,
Windows XP Home or Professional SP1 or better, or,
Windows XP for Tablet PC SP2, or,
Windows 2000 SP3 or better
Pentium III 800 minimum, Intel Pentium IV recommended
512 MB RAM
550 MB free disk space for installation
1024 x 768 with True Color
Microsoft Internet Explorer 6.0 SP1 or higher
Mouse, trackball, or compatible pointing device
CARLSON SOLUTIONS BASED ON AUTOCAD 2004 EMBEDDED
TAKEOFF R1 / SURVEY OEM 2004, 2005, 2006
Microsoft Windows XP (Professional, Home Edition, or Tablet PC Edition), or,
Windows 2000, or Windows NT 4.0 (SP6a or later)
Pentium III 800 minimum, Intel Pentium IV recommended
256 MB RAM
300 MB free disk space for installation
1024 x 768 VGA with true color (minimum)
Microsoft Internet Explorer 6.0
Mouse, trackball, or compatible pointing device
AUTOCAD®
Please visit the AutoCAD System Requirements page for current specifications which are subject to change without advance notice. Please visit the Autodesk summary of the Operating system compatibility for AutoCAD (Autodesk Bulletin TS14078105) for historical references between AutoCAD and its supported operating system(s).
Please see contents above for hard disk space requirements for the Carlson application.

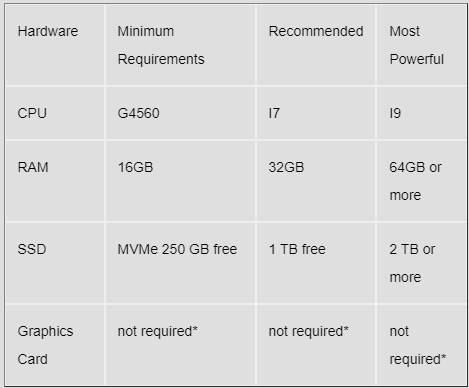

PHOTOCAPTURE STANDALONE
* Nvidia Geforce series cards are recommended for other Carlson Software product
